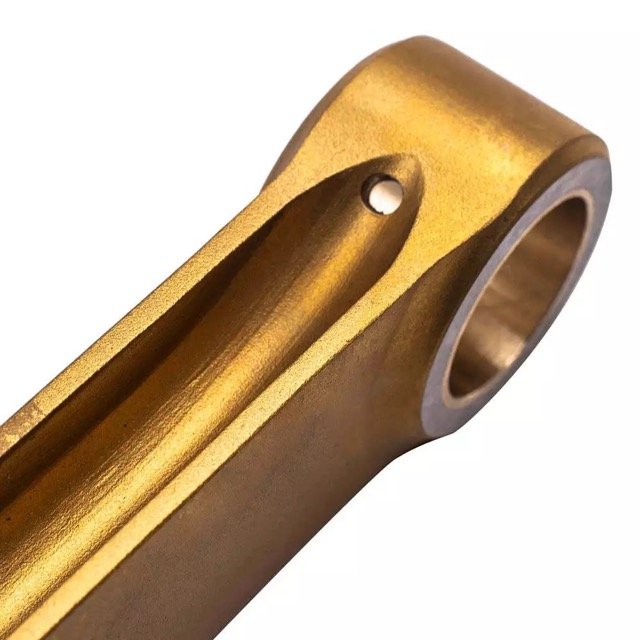

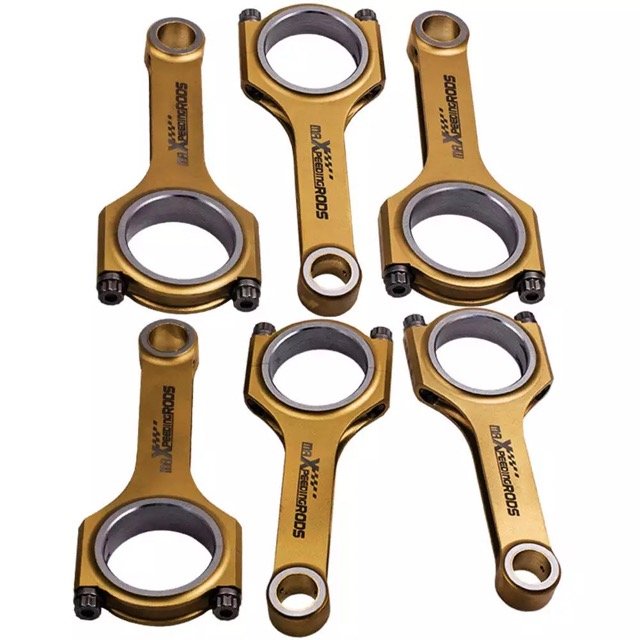

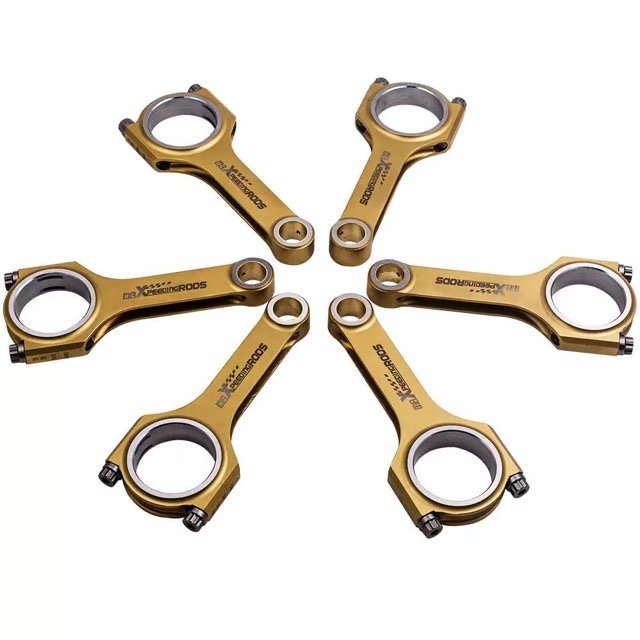

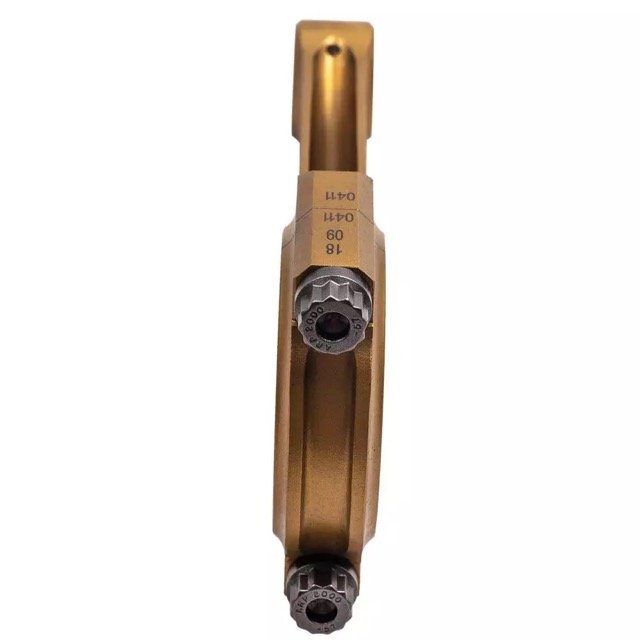

BMW 328 528i E36 E46 M52B28 Con rods Racing H-Beam Connecting Rods W/ ARP2000 Bolts
H-beam Conrods Quantity: 6 Pieces as showing in picture
The big end bores are honed to a +/-.01mm tolerance
Advertised Horsepower Rating: 250HP/piece
Advertised RPM Rating: 9000 rpm
Bolts Size: ARP 2000 3/8" bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Warranty: one year warranty for any manufacturing defect
H-beam Conrods Quantity: 6 Pieces as showing in picture
The big end bores are honed to a +/-.01mm tolerance
Advertised Horsepower Rating: 250HP/piece
Advertised RPM Rating: 9000 rpm
Bolts Size: ARP 2000 3/8" bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Warranty: one year warranty for any manufacturing defect
H-beam Conrods Quantity: 6 Pieces as showing in picture
The big end bores are honed to a +/-.01mm tolerance
Advertised Horsepower Rating: 250HP/piece
Advertised RPM Rating: 9000 rpm
Bolts Size: ARP 2000 3/8" bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Warranty: one year warranty for any manufacturing defect
Application
Compatible for BMW E36 E46 328i 528i M52B28
Compatible for BMW M52 3.2 LTR
Compatible for BMW M20 325i/s / E36 M3 M52 TU M52B28
Compatible for BMW M20B25 / M50B25/M54B30 / M52B32/S52B30/S52B32
Feature
The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.
1. Titanizing can further improve the bending strength of the product;
2. Titanizing will not affect the weight of the connecting rod;
3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;
Dimensions
Center to center length: 135mm/5.315"
Big end diameter: 48mm/1.89"
Small end diameter: 22mm/0.866"
Big end width: 21.9mm/0.862"
Small end width: 21.9mm/0.862"
